WINGa

Overview

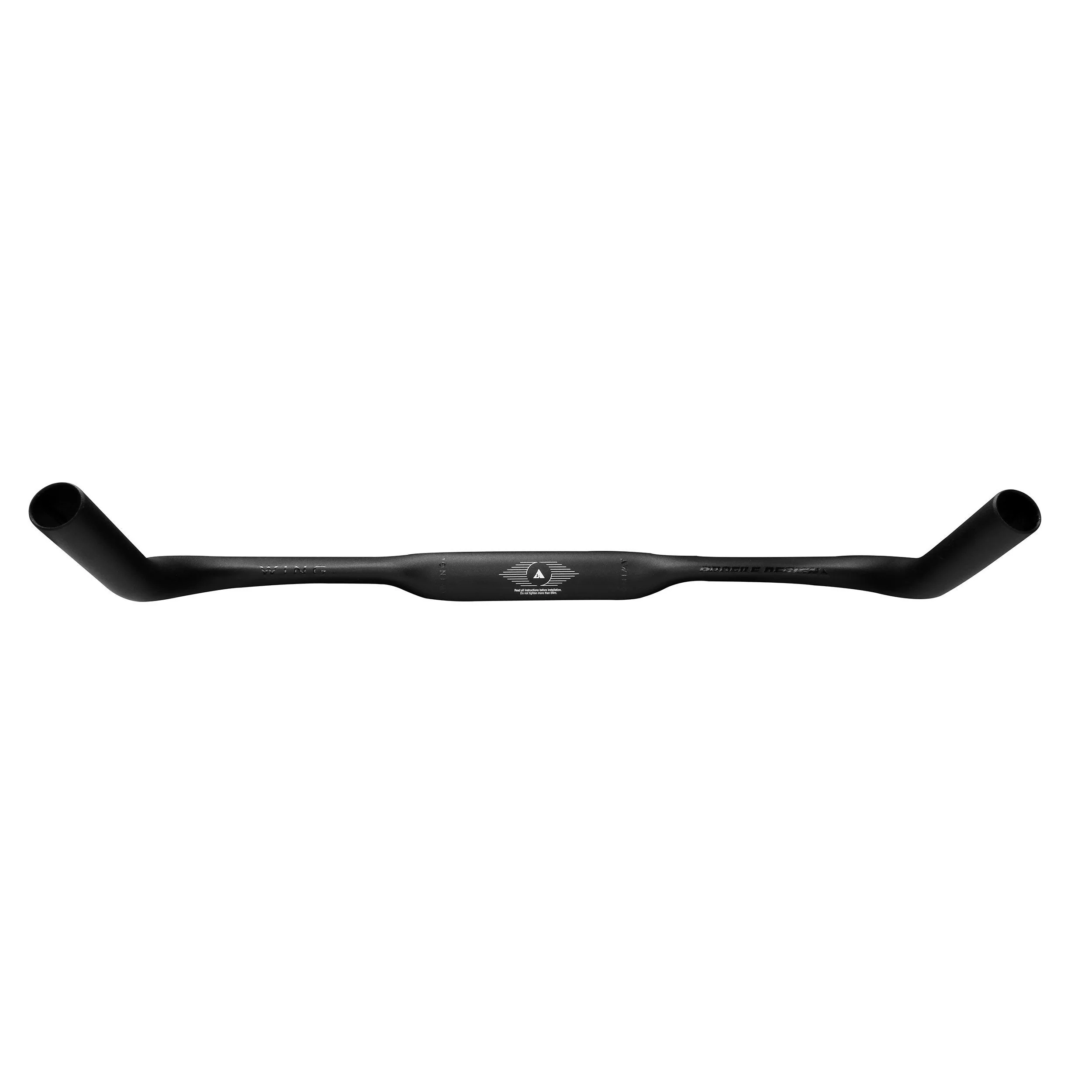

The WINGa is the successor to our popular T2 wing model.  It offers improved grip ergonomics and cable routing compared to the classic version.

Performance

The WINGa has a formed wing section for enhanced aerodynamics and routing designed to keep cables out of the wind.

Fit Data

The WINGa is available in a comprehensive size range to offer the correct fit for any rider.

The clamping area width increases as the width of the bar increases - to allow larger riders to use a wider elbow position in the aerobars.

Accessories

The WINGa can be used with any Profile Design clipon aerobar, brake lever and stem option.

Specs

• Weight: 285g (42cm)
• Width: 40, 42, 44, 46cm (center to center)
• Center Clamp Diameter: 31.8mm
• Clamp Width: 100, 120, 140mm (46cm)
• Clip Compatible: Yes
• Material:  6061-T6 AL
• Finish: Matte Black
• Pursuit Reach: 164.4mm (center to tip)
• Pursuit Drop: 0
• Pursuit OD/ID: 23.8 / 20.3mm
• Drop Outsweep: No

Tech Guide

Torque settings

• Stem Clamp: 6Nm
• Aerobar Clamp: 6Nm

Manual

WINGa Instillation Instructions
